Sprinter Van Dimensions for Renters: Mirror Height and 79 in Headroom
Sprinter Van Dimensions for Renters: Mirror Height and 79 in Headroom
Mercedes‑Benz Sprinter overall lengths run from about 233.5 inches to 290 inches, built on either a 144-inch or 170-inch wheelbase. Overall height varies by roof: roughly 96 inches on standard-roof models and up to 114 inches on high-roof versions. Interior standing height varies by roof type, offering modest headroom on standard roof models and significantly more standing room on high-roof versions. Before you buy, upfit, or reserve a rental, confirm two numbers: overall height with mirrors and interior standing height.
TL;DR:
- The overall height of Sprinter vans varies from about 96 inches on standard roofs to over 114 inches on high-roof models, affecting garage compatibility.
- The 144-inch wheelbase van measures roughly 233.5 inches in length, while the 170-inch version extends up to 290 inches for the extended model, impacting parking and maneuvering.
- Interior standing height is approximately 68 inches on standard roofs and up to 79 inches on high-roof configurations, crucial for conversions and passenger comfort.
- Width at mirrors is consistent at around 92 inches, a critical factor when fitting into tight spaces or loading docks.
- Always verify vehicle height with mirrors and interior clearance, considering safety margins and accessories, before parking in low-clearance areas.
Table of Contents
- Sprinter Van Dimensions by Wheelbase and Roof Type
- What Are the Interior and Cargo Dimensions of a Sprinter Van?
- How Do Sprinter Height Measurements Actually Work?
- Sprinter Van Height in Feet: Quick Conversions and Garage Fit
- How We Match Renters to the Right Sprinter Configuration
- Ready to Book the Right Sprinter Configuration?
- Sources
- FAQ

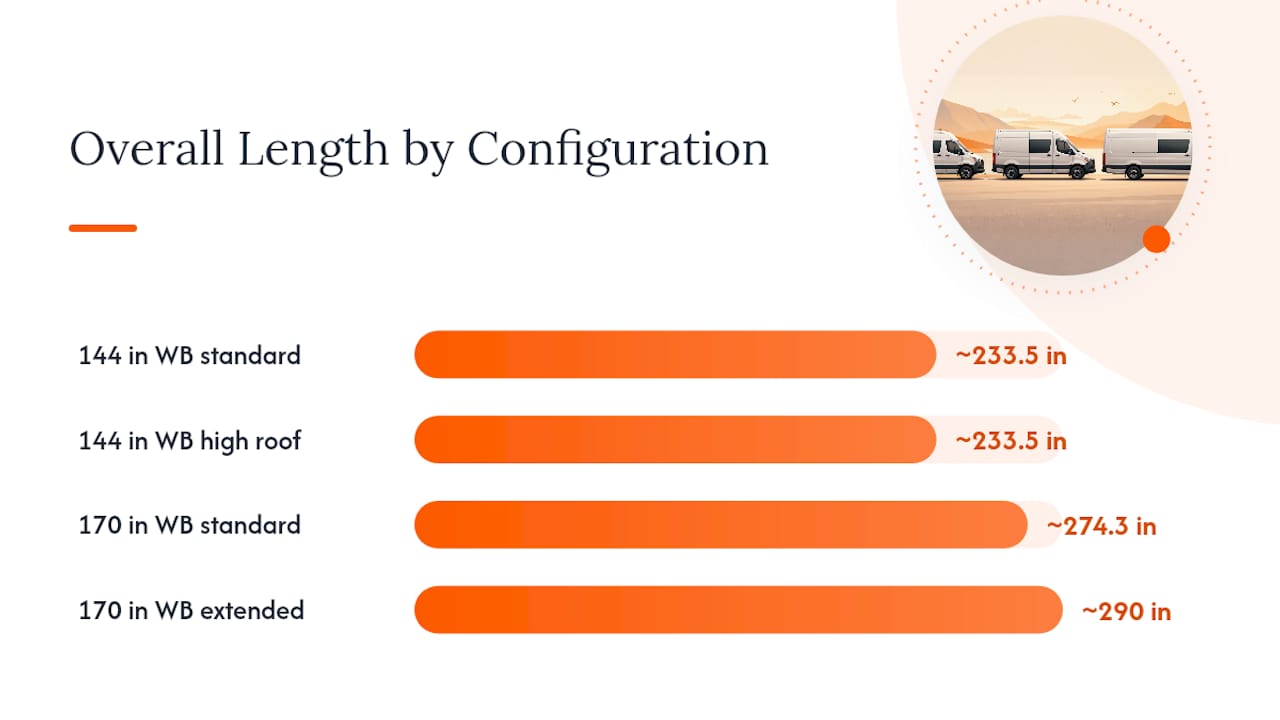

Sprinter Van Dimensions by Wheelbase and Roof Type
The exact exterior numbers depend on which wheelbase and roof combination you’re looking at, and the differences between them are bigger than most buyers expect. A 144-inch wheelbase van and a 170-inch extended version aren’t just “a little longer.” The gap adds two feet or more of usable cargo length, plus a wider turning circle.
Mercedes‑Benz builds the Sprinter around two wheelbases: 144 inches and 170 inches. Overall lengths land around 233.5 inches for the shorter wheelbase, 274.3 inches for the standard 170-inch build, and up to 290 inches for the extended 170-inch version, according to Mercedes‑Benz’s official Sprinter cargo van specifications. Roof height is where things get more interesting. Standard-roof cargo models come in around 96.3 inches tall, while high-roof configurations climb to roughly 107.5 inches, and some high-roof passenger trims reach 114.2 inches with the roof and equipment included.
Here’s a compact breakdown of the core exterior figures:
| Configuration | Wheelbase | Overall Length | Overall Height |
|---|---|---|---|
| 144 in WB, standard roof | 144 in | ~233.5 in | ~96.3 in |
| 144 in WB, high roof | 144 in | ~233.5 in | ~107.5 in |
| 170 in WB, standard length | 170 in | ~274.3 in | ~96.3–107.5 in |
| 170 in WB, extended | 170 in | ~290 in | ~107.5–114.2 in |
Width with mirrors sits around 92.3 inches across most configurations, per the same Mercedes‑Benz spec sheet. That number matters more than most people assume once you’re trying to squeeze into a loading dock or a narrow alley behind a venue.
One caveat worth flagging: exact figures shift slightly between model years, 2500 versus 3500 chassis ratings, and drivetrain options like 4×4. iSeeCars’ Sprinter dimension breakdown shows spec tables carried out to fractions of an inch, which is a reminder to pull the exact trim-year sheet rather than eyeballing a general range when precision actually matters.
What Are the Interior and Cargo Dimensions of a Sprinter Van?
Exterior height tells you whether the van clears a garage door. Interior height tells you whether you can stand up inside it, which matters just as much if you’re loading gear, converting the van, or moving passengers around during a long trip.
Standing height splits cleanly by roof type. Standard-roof cargo vans give you about 68 inches of headroom, which is workable for loading but not for standing upright if you’re over 5’8". High-roof models jump to roughly 79 inches, according to Mercedes-Benz of Canton’s dimension guide, which explains why nearly every camper conversion and mobile workshop build starts with a high-roof shell.
Cargo bed length and floor width round out the picture:
| Measurement | 144 in WB | 170 in WB | 170 in Extended |
|---|---|---|---|
| Cargo bed length | 132.9 in | ~173.6 in | ~189 in |
| Max width at floor | 70.4 in | 70.4 in | 70.4 in |
| Interior standing height (high roof) | ~79 in | ~79 in | ~79 in |
A few more numbers matter once you’re actually loading the van, not just measuring it in a parking lot:
- Side and rear door opening heights run roughly 71–73 inches on high-roof configurations.
- Load height, meaning ground to cargo floor, sits around 27–28 inches.
- Turning diameter runs about 40.7 feet on the 144-inch wheelbase and climbs to 47–52 feet on the 170-inch version, which is a real factor if you’re navigating tight parking structures or narrow event driveways.
That turning circle difference is easy to underestimate on paper. A 170-inch Sprinter needs nearly a full extra car length of room to complete a U-turn compared to its shorter sibling.
How Do Sprinter Height Measurements Actually Work?
“Height” on a spec sheet isn’t one number. It’s at least three, and mixing them up is the single most common fit mistake buyers and renters make.
Overall height is the vehicle’s tallest point, measured without mirrors, and it’s the number you compare against a garage door or parking structure clearance sign. Height with mirrors adds the side mirrors back in, which matters for tight alleys and drive-through lanes even though it rarely affects garage clearance. Interior standing height measures the cabin’s ceiling clearance, which tells you whether a 6-foot adult can stand up straight in back.
Before you measure anything, run through this checklist:
- Measure your garage or doorway opening at its lowest point, not the average.
- Subtract 2 to 4 inches for safety margin, since door tracks, sensors, and uneven driveways eat into clearance.
- Add extra height allowance if you’re planning a roof rack, vent fan, or solar panel mount.
- Check whether the model year or trim you’re considering is a 4×4 variant, since dealer height listings show 4×4 and older configurations often run taller than standard 2500/3500 builds.
- Request the vehicle-specific spec sheet before finalizing any purchase or rental booking.
Pro Tip: If you’re loading gear with a ramp, don’t just check the van’s stated standing height. Ramp angle and stacked cargo height eat into your clearance fast, so build in a 2 to 4 inch buffer above the published number before you commit to a tight garage or dock.

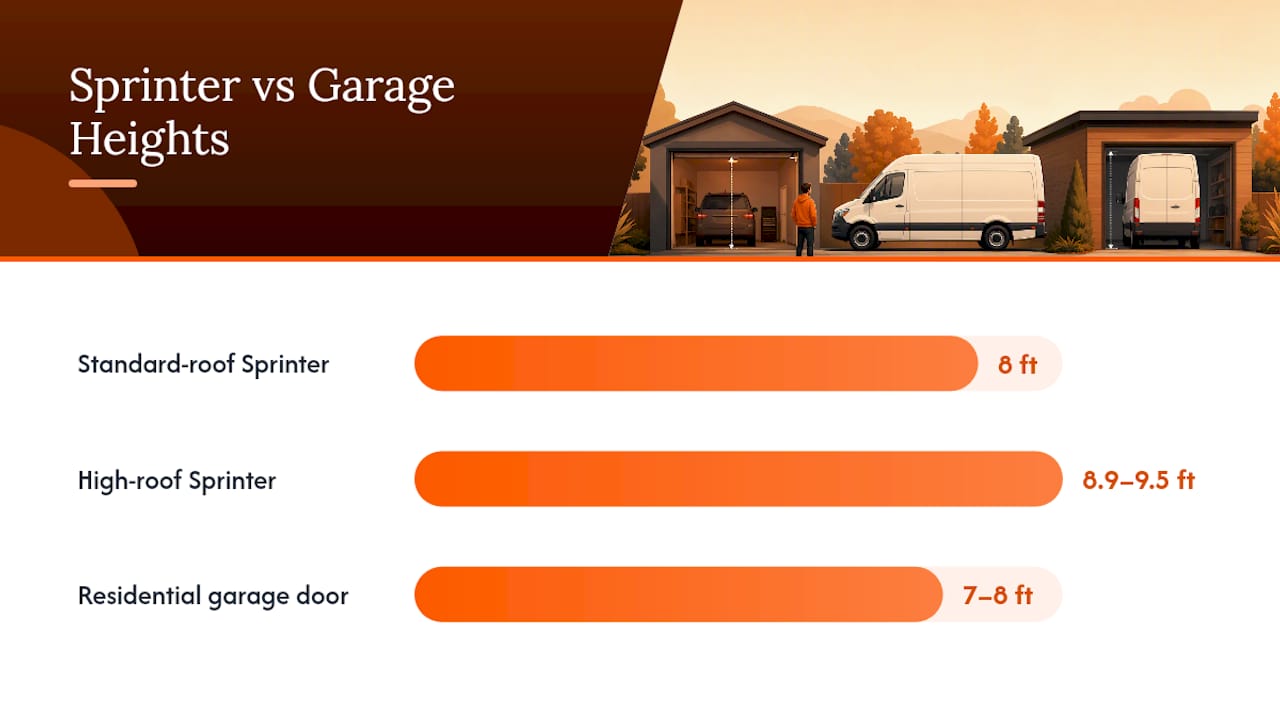

Sprinter Van Height in Feet: Quick Conversions and Garage Fit
Most garage doors and clearance signs are marked in feet, not inches, so here’s the quick translation. A 96-inch standard-roof Sprinter comes out to exactly 8 feet. A high-roof model at 107 to 114 inches converts to roughly 8.9 to 9.5 feet. Standard residential garage doors typically run 7 to 8 feet tall, which means most high-roof Sprinters will not clear a standard home garage without hitting the header.
Run through this three-step check before you assume anything fits:
- Measure your garage or gate opening at its lowest point.
- Add a 2 to 4 inch safety buffer to the van’s stated height.
- Confirm mirror width and any roof-mounted accessories against the opening’s width and height.
How We Match Renters to the Right Sprinter Configuration
At My Van Rentals, we steer group bookings toward high-roof Sprinters when passengers need to move around the cabin comfortably, and toward standard-roof models when a customer’s route includes low parking structures or a home garage. Pickup and delivery options mean you don’t have to guess at clearance on your own property. Our team confirms the exact configuration against your venue or garage before the van ever leaves the lot, based on the dimension guidance detailed above.
— Gabriel
Ready to Book the Right Sprinter Configuration?
My Van Rentals gives you a faster path to the correct van than guessing at specs alone. We offer Mercedes Sprinter 12- and 15-passenger rentals with both standard and high-roof availability, plus pickup and delivery so you’re not the one measuring a garage door at 6 AM before a road trip.
If your group needs extra legroom or standing headroom for gear, the high-roof option handles it. If you’re routing through a parking structure with a strict clearance limit, tell us and we’ll match you to a standard-roof unit instead. Browse configurations on our Sprinant rental overview page, or check availability directly through city pages like Atlanta or Las Vegas. Need trailer support for oversized event gear alongside your van? Mr. Niceday’s Trailers covers that side of logistics. Start your reservation on our main booking page and lock in the configuration that actually fits your trip.
Sources
- 2026 Cargo Van | Sprinter | Mercedes-Benz Vans
- 2024 Mercedes-Benz Sprinter Van Dimensions
- Find 2026 Mercedes-Benz Sprinter interior, exterior and cargo dimensions
FAQ
How long is a 144-inch Sprinter van in feet?
A 144-inch wheelbase Sprinter measures about 233.5 inches overall.
Does the Mercedes Sprinter van fit in a garage?
A standard-roof Sprinter at about 96.3 inches (8 feet) clears most residential garages, but high-roof models at 107 to 114 inches typically exceed standard 7 to 8 foot garage door openings.
What are the dimensions of a 170-inch Sprinter van?
The 170-inch wheelbase Sprinter runs about 274.3 inches overall in standard length or up to 290 inches in the extended version, with a cargo bed length of roughly 173.6 to 189 inches.
What are the dimensions of the current Mercedes Sprinter van?
Current Sprinter models keep the same core dimensions: 144 or 170-inch wheelbases, overall lengths from 233.5 to 290 inches, and overall heights from about 96.3 to 114.2 inches depending on roof and trim.
Which Sprinter roof height is better for standing up inside?
High-roof Sprinters offer about 79 inches of interior standing height, enough for most adults to stand upright, while standard-roof models offer around 68 inches.
